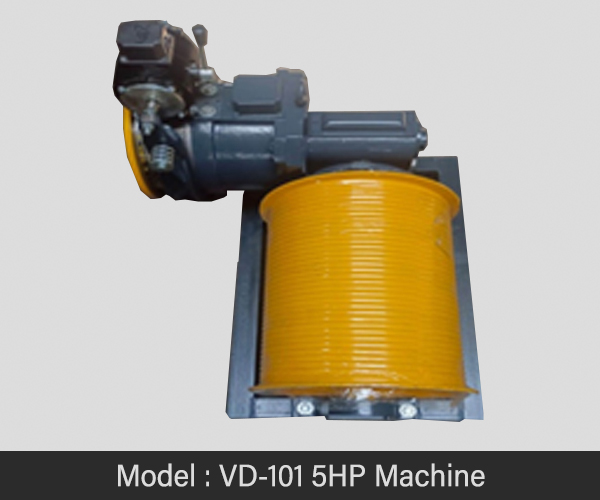

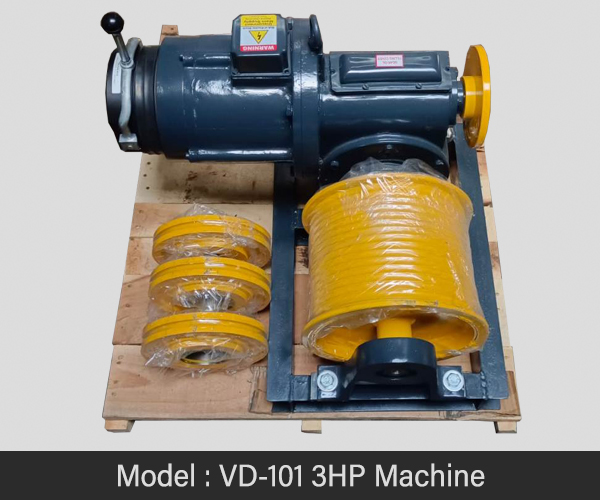

VD-101 3 HP , 5 HP Machine

MODEL

VD-101 3 HP Machine, VD-101 5 HP Machine

Model	Duty Load (KG)	Roping	Gear Center	Speed	Resio	Motor Details			RPM	Drum Dia	Brake Details
						HP	KW	Pole
VD-101	500	2:1	4”	0.15 to 0.30	31:1	3	2.2	6	960	245/ 350mm	190V DC
VD-101	700	2:1	4”	0.15 to 0.30	31:1	5	3.7	6	960	245/ 350mm	220V DC
